DRAINFIX TWIN infiltration rainwater | low traffic

IDEAL FOR: infiltration with high volumes of rainwater in low-traffic areas in private and public areas.
%s


YOUR BENEFITS WITH DRAINFIX TWIN

HIGH STORAGE CAPACITY

= Spolehlivost
PODROBNOSTI

HIGH STORAGE CAPACITY

  • with combinable elements
    --> double volume
  • large retention volume offers
    considerable room for sudden precipitation

= Spolehlivost

SPACE-SAVING DESIGN

= Úspora nákladů
PODROBNOSTI

SPACE-SAVING DESIGN

  • reduced time and effort on site and space requirements by 2/3 - compared to conventional gravel trenches
  • area remains completely usable for other purposes:
    --> depending on the installation situation, the load capacity ranges from pedestrian accessible to SLW 30 (car)
  • optimised transport:
    --> 32 elements stacked on a Euro pallet = storage volume of approx. 8.1 m

= Úspora nákladů

FLEXIBLE APPLICATION VIA COMPLETE SYSTEM SOLUTION

= Spolehlivost | Záruka kvality
PODROBNOSTI

FLEXIBLE APPLICATION VIA COMPLETE SYSTEM SOLUTION

  • DRAINFIX TWIN elements
  • end cap:
    with variable connection options via pipe outlet
  • DRAINFIX multifunction shaft:
    for inspection or filtering

= Spolehlivost | Záruka kvality


UNIQUE COMBINATION POSSIBILITY

= Flexibilita | Jedinečnost
PODROBNOSTI

UNIQUE COMBINATION POSSIBILITY

  • six different combinations with the two basic elements DRAINFIX TWIN 1 and DRAINFIX TWIN 0
  • the elements are optimally combined according to soil conditions and requirements

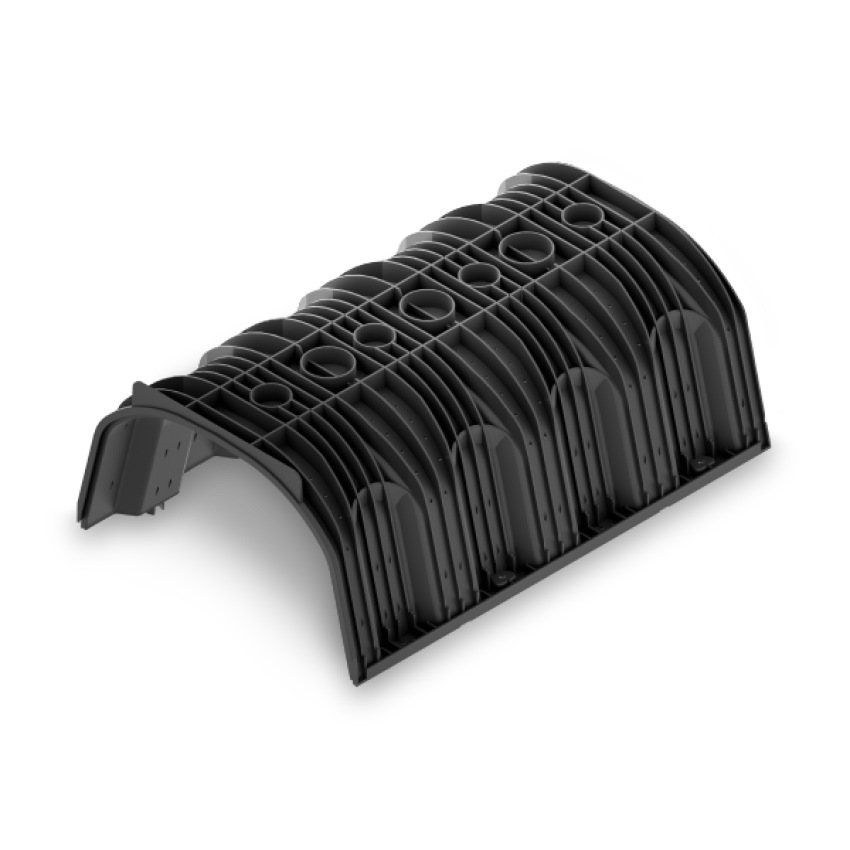

  • DRAINFIX TWIN element 1:
    with drainage holes for retention and infiltration
    --> application for high and medium ground water level
  • DRAINFIX TWIN element 0:
    without drainage holes
    --> use under sealed surfaces or for installation without special gravel packing

= Flexibilita | Jedinečnost

QUICK INSTALLATION & EASY HANDLING ON SITE

= Rychlost instalace | Úspora nákladů
PODROBNOSTI

QUICK INSTALLATION & EASY HANDLING ON SITE

  • DRAINFIX TWIN elements made of PP recycled composite
    --> low weight
  • design enables easy joining of the elements
    --> modular system
  • expandable as needed
  • flexible installation arrangement due to variable combination

= Rychlost instalace | Úspora nákladů

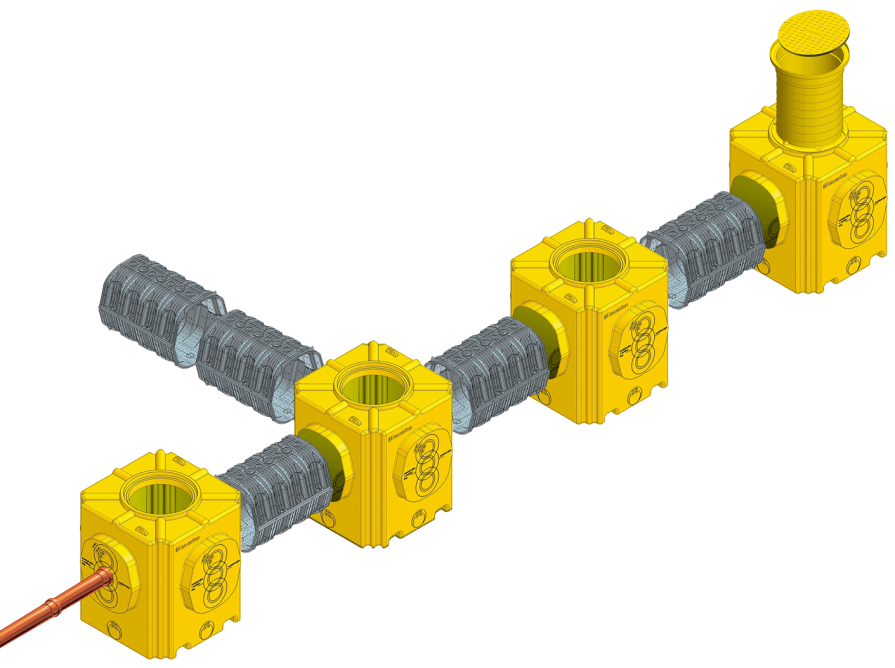

KOMPONENTY SYSTÉMU

%s
Multifunkční šachta z PE
Prvek DRAINFIX®TWIN 1/1 z PP s perforováním pro vsakování a retenci povrchových vod
Volitelný nástavec na multifunkční šachtu
Poklop pro multifunkční šachtu, z PE, třída A 15. Možno použít poklop z litiny, třída D 400.
Možnost snadného napojení na potrubí několika rozměrů

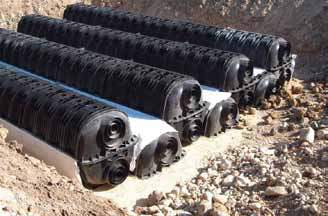

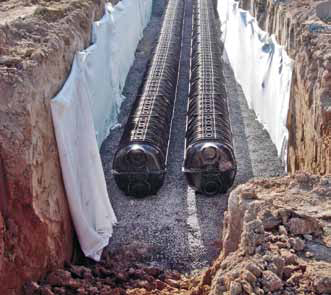

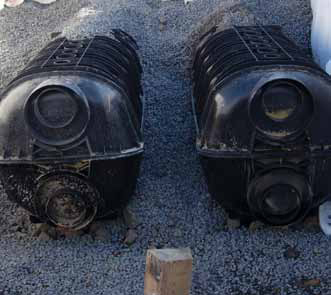

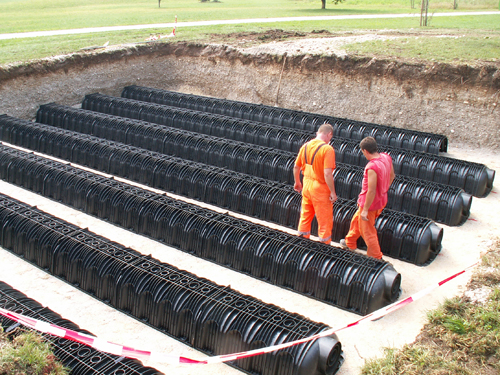

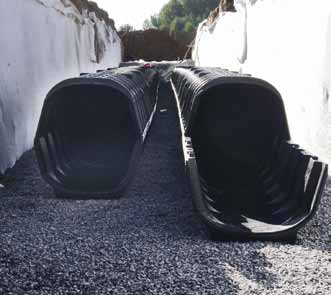

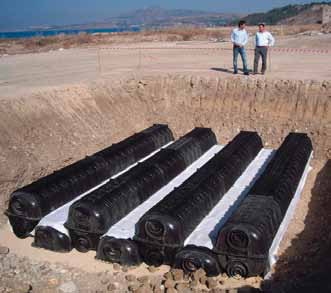

DRAINFIX TWIN Applications
